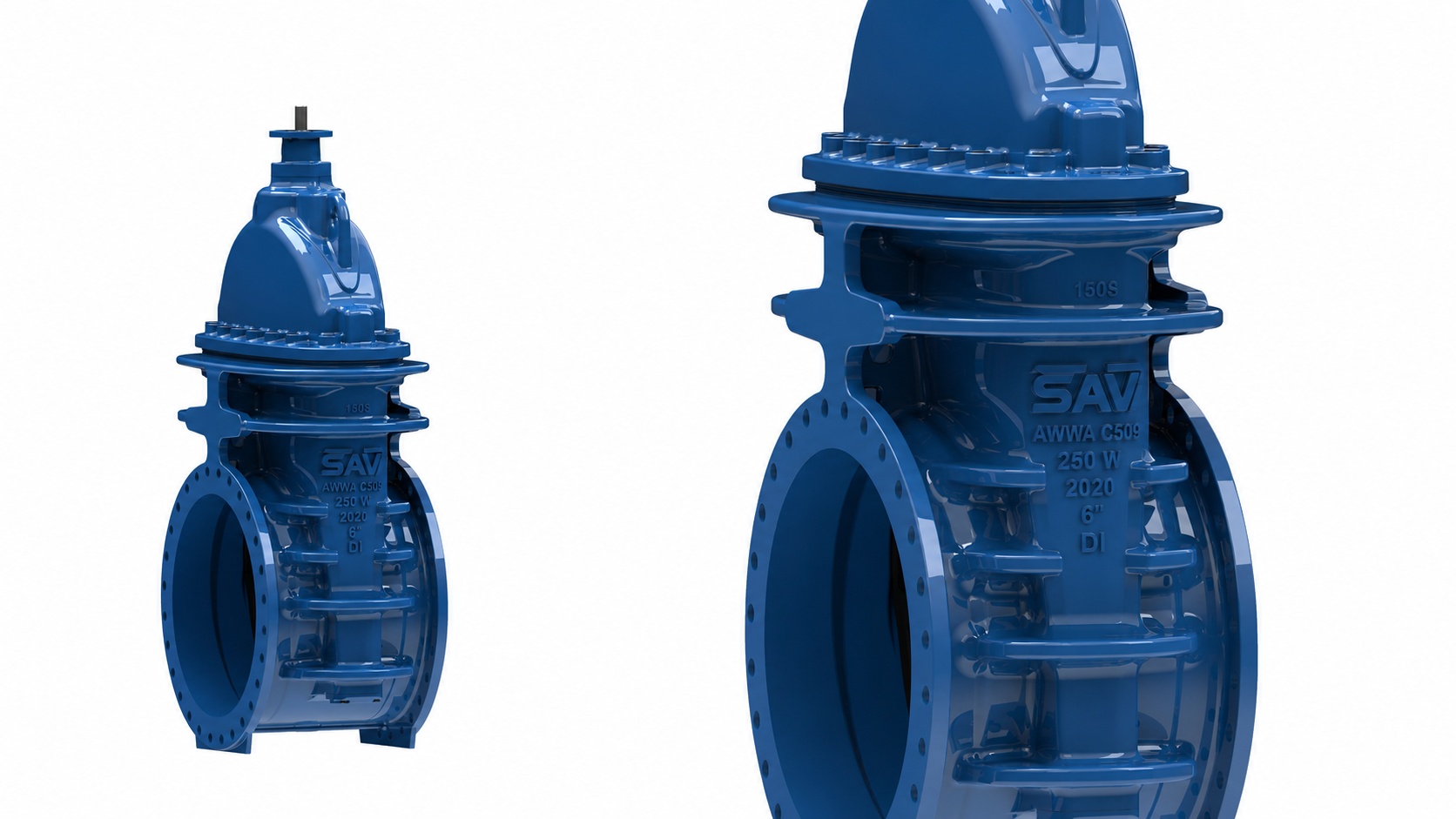

Model LD: Large diameter gate valves

The Model LD valve is our large diameter ductile-iron gate valve meeting or exceeding the requirements of AWWA C515. It comes in MJ x MJ, MJxFL, and FLxFL versions. All valves come pre-fitted with an F16 mounting plate to mount gearing or motorized actuators. Bevel or spur gearing is available on request for 18" to 24" valves. Geared operation is included on all valves over 24”.

Features

SAV bolting and gasket system

316 stainless steel bonnet bolts will never come in contact with water or soil and are 100% protected against corrosion
Unique gasket has round inserts for bolts, which are countersunk into the tapped valve body and capped with hot-melt
Easily disassembled after years of service - but, you’ll never need to...

Stainless steel stem

400 series Stainless Steel is SAV’s standard stem material, providing twice the yield strength required by AWWA; Potential for bent and broken stem is eliminated
Threads are cold-rolled, work-hardening the steel, and ensuring smooth thread edges for low operating torque
Unique wiper-ring protects stem from contact with soil and water

EPDM wedge w/captive wedge nut

Standard EPDM wedge is taste and odor free, stands up to chlorine and other disinfectants
Wedge nut is fully encapsulated in the wedge, resulting in efficient mechanical motion and 10X the open/close operations vs. competitors; Provides higher torque resistance and prevents rubber wear and leakage

Serial number

Every SAV valve has a unique serial number engraved on the stem – also shown on the valve label; Serial number provides complete traceability to the date the valve was built, and every operation performed throughout the manufacturing process
SAV is the only gate valve and fire hydrant manufacturer in the USA with a Quality Assurance program that requires serializing every product for traceability
